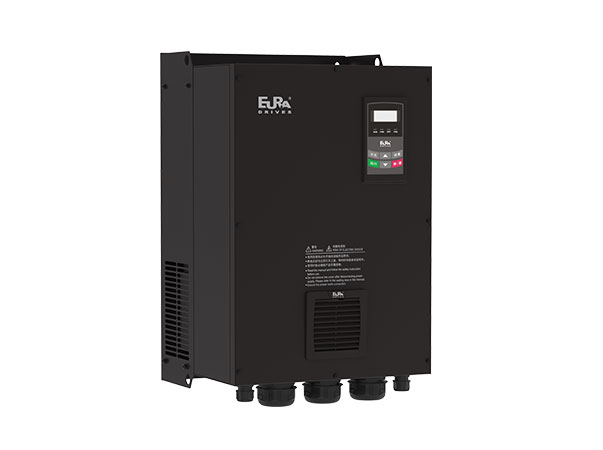

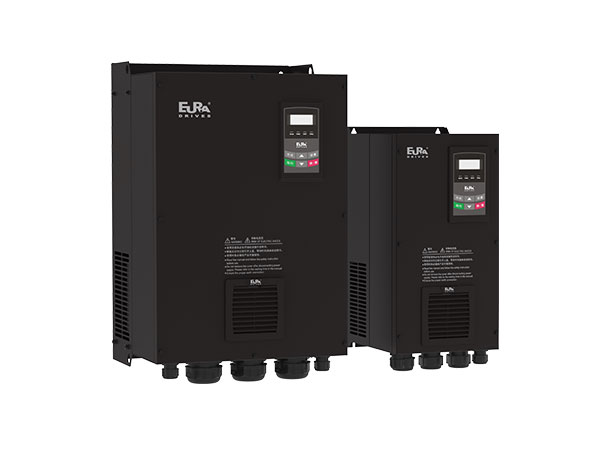

E2400 series

• DSP based high-tech motor control concept, suitable for V/Hz, SENSORLESS VECTOR, PMM synchronous motor control, SPEED/TORQUE control mode

• Intelligent AUTOTUNING functions for quick and easy set-up

• 150% overload for 60 seconds

• Output frequency 0.50~590Hz(V/F), 0.50~150.0Hz(SVC)

• Low noise by carrier frequency range of 2K~13K

• Rugged construction, IP55 as standard for whole range, IP66/NEMA 4X indoor is optional up to 30kw

• MODBUS-RS485 ready

• Optional built-in brake chopper

• C3 class filter standard

• Universal parameter set for all kind of industrial applications, including integrated PID controller routines, automatic carrier frequency and V/Hz curve adjustment for advanced torque control

• Eura DV software for inverter control, programming and troubleshooting Parameter duplication stick including USB to RS-485 converter

• Approved and certified for worldwide standards, by an independent organization

E2400 is widely used for (in door) harsh enviornment, like high powder, graphite, humidity, etc.
